This is my Pansonic F-M14C7 ceiling fan controller board. The fan goes out of control few days ago. I can't control the fan speed as well as turn off the fan using remote control.
A friend on mine told me to change one of the capasitor. So, I just took a wild guess. It must be the black one.
I print this photo and went to electronic spare part shop and ask for this capasitor. Unfortunately the capasitor information on the printout is not enough. The sales person told me there's another information printed on top of this capasitor.
Realized that I'm a bit frustrated, the shop guy take one capasitor, put it in front of me and say "This capasitor might work for your fan, but I cannot guarantee. If you willing to try, take for 4 ringgit". I agree with him, handed him 4 ringgit and bring the capasitor home.

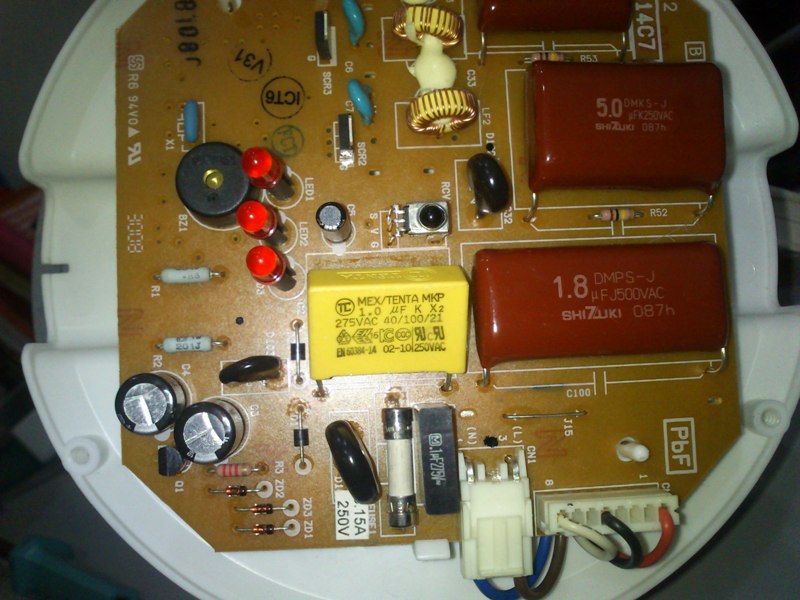

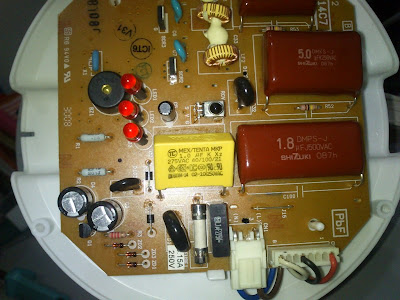

Ok, this is how it look after I replace the capasitor. And yes... it's working. My Pansonic F-M14C7 ceiling fan is back on the ceiling.
Photo of the original capasitor. It's a Metallized Polyester Film Capacitor. You can search on Google using "ECQUL 40/100/21" keywords. I believe the sales person is looking for the .82uf value. The one that he gave me is 1.0uf.
I'm happy that my fan is still working. Save me a few hundred ringgit.
Tags
diy
Hi Budzer,
ReplyDeleteHow are you? I'm using the same fan as you are.Seems like the age of our fan is the same (around 2years old).
I just noticed today that I can't control the speed as well as turning the fan off using remote. Symptom is more or less as you were having before.
Your blog is really helpful to me. I'm gonna try changing the component tomorrow. By the way, I guess the one that you have changed is called 'fan condenser' if i'm not mistaken(correct me if i'm wrong)
Great sharing!! You help me save 2 fans. One was running slow and the other one totally not moving at all. change the same part and it work on both fans.
ReplyDeleteHi where to get the replacement parts ?
ReplyDeletepart able get at any electronics shop
ReplyDeleteHi friend,
ReplyDeleteThanks for this info, but can you share how to dismantle the board? Mine totally not working at all, no idea ...
Muhammad Paizal, take down the fan. from the top view you will see 6 screw, 3 for blade and other 3 for lower cap. Unscrew 3 screw for the lower cap. I can't remember all the detail but you will sure know what to do once you unscrew the lower cap. Hope that's help you.
ReplyDeleteI am having the similar issue on 2 fans and I wonder where can I find the spare part in Bukit Mertajam. Anyone know if there is electronics shop around in Bukit Mertajam area? Thanks a lots and really looking for help here.
ReplyDeleteGo to jalan banggali buttorworth
DeleteHow to remove the fan cover and the contorller board?
ReplyDeletewhere can i get this capasitor?..i can't get it in penang island
ReplyDeleteAlright, I can help with the sparepart. I'm going back to jalan pasar this week. So.. if anyone need the capasitor, just tell me. Just pay the delivery and the part price.I'm not going to make any profit out of it. No warranty from me as well.
ReplyDeletehow much is the capacitor. mine having the same problem but different model it is M14C5
ReplyDeleteI bought the capasitor for 4 ringgit.
ReplyDeleteTest out and it worked for my pananosic ceiling fan. Thanks Guys!!
ReplyDeleteworks like new! thanks a lot!
ReplyDeleterecently i change it at shop near my place . its cost me RM 70 . and now its work good
ReplyDeleteI had able to do it. Thanks a lot
ReplyDeletegreat info, i have got 4 panasonic 5 blades remote control fans not working .... :(
ReplyDeletethanks for info, it is working!
ReplyDeleteMillion thanks, your info save me 50 bucks.
ReplyDeletemay I know how to remove and and replace with a new capacitor ? needs soldering or just slot in ?
ReplyDeleteYes, need soldering
ReplyDeletecan you help to look for this capacitor for me and the this info is on the capacitor :
ReplyDeleteCMPS-J
1.9 UF J
AC530V
SNR 1.H08 25
This is for Panasonic ceiling fan model F-M15E6.
Thank you.
I am also having the M15E6 pcb but is KDK which I believe is the same. Did you manage to fix yours?
ReplyDeleteNo ! the fan still having problem after I hv replaced the capacitor. Fan speed can not be controlled by the remote control device and operating with only one speed ? Not sure where is the problem now !?
ReplyDeleteHi guys, if you are looking for someone to repair broken ceiling fan with remote, you can go to this place nearby jalan pasar, address:1, Jln Beruang, Pudu ,55100, Kuala Lumpur. Nearby the chinese school. Bring the fan board and look for Joe
ReplyDeleteHi Zaidy, Thank you for the information but I'm at JB and I wl get this done here.
ReplyDeleteGreat, this is good info.
ReplyDeleteI shall try it.
Just replaced previous board from Panasonic service center and 2 weeks down it's broken again.
I think if the fanspeed 3 is like fanspeed 2 (speed-3 is slow like 2), then need to replace the 1.8uF cap.
ReplyDeletehi, i just ordered the replacement cap similar to your post.
ReplyDeletehopefully its the one.
if its not.. i guess trial n error on replacing all caps but anyone know the cost? the brown caps looks pricey to me.
well waiting for the capacitor and try it out soon.
anyway slightly out of topic.
anyone know the connection if i were to bypass the pcb? any leads/links?
i just thinking of changing it to regulator fan in case the pcb really dead.
i pretty much sure that regulator configuration still need a capacitor attached to it just not sure the wiring diagram.
need some help with that (preferably same wire color code as per picture in the post white black red)
Yes, it worked magically well for me too. My ceiling fan kept jerking and remote control failed to turn on/off and no speed adjustment at all. I bought the capacitors from Jalan Pasar this morning. Thanks to Budzer for his excellent article sharing with us.
ReplyDeleteWell done bro!
Guys, pls do not remove the entire ceiling fan off from the ceiling. You can easily remove the bottom tray cover by unlocking the tray anti-clock wise direction. Then, unscrew three screws to remove the centre tray so that you can locate the Circuit Board.
ReplyDeleteOnce done, remove the two cable sockets. Be sure that u turn off the fan main switch on the wall before you remove the entire Circuit Board. It would be easier to unsolder the Black 0.82uF 250v capacitor. It cost me RM5.60 each only. I told the shopkeeper that friend of mine bought only RM4.00, but that guy told me that material cost has been increased tremendously.
All you need to do is to reverse the instructions when putting the Circuit Board back to the inner core. Hope this helps.
In 2013, i bought this 1.0 275v poly capacitor online at ebay around 67 sen per piece. Though i have to buy 1 lot 10pcs. I bought 3 lot for spare because my panasonic wall fan also have this capacitor problem and it uses 1.0 uf polypropylene capacitor. In 2018, you can buy it at Aliexpress at the same price. Ebay now has less items and much higher price than aliexpress.
Deletehi xFWWONGx...
ReplyDeletehow to remove the circuit board?i've already remove the bottom cover and unplug both socket cables..
thanks..
Hi
ReplyDeleteI got a KDK Fan, using the same PCB M14C7. But using different capasitor, only 0.1uF.
Do you you have any idea I have to change to what uF? Or just change to the same as original one?
Thanks for your info, both of my ceiling fan are function already
ReplyDeleteWhere I can this capacitor in Penang ?
ReplyDeleteMay I know where can buy the capacitor in PJ or KL?
ReplyDeleteYour tip in replacing the said capacitor was excellent. However after running a few days my Nami fan starts with an irritating electrical hum for a few minutes ( at any speed). Any idea on how to solve this?
ReplyDeleteThis blog really help, I managed to fixed my 2 years old fan. Thanks. I have another model with the humming noice for all speed, this fan able to remote control. The capacitor haven't change yet.Just would like to get better ideas on this humming noise problem.
ReplyDeleteMy cotril board for F-M14C5 already repair by replace capacitor both 0.82 uF and small one .1 uF . Control and speed ok but the problem is hummning noise come when the fan rotate. Now i,m try to relpace resistor for R52 & R53 value 100k ohm. Wish I,m can settle this humming noise. thanks...
ReplyDeleteFrens... maybe these infos might help those who with humming or other noises on their ceiling fan...
ReplyDelete1. Noise: A Guide To Silencing A Noisy Ceiling Fan
http://www.spinifexfans.com.au/resources/silence-a-noisy-ceiling-fan/
2. How to Get Rid of the Humming Sound in a Ceiling Fan
http://www.ehow.com/how_5721007_rid-humming-sound-ceiling-fan.html
3. How to Fix Noisy Ceiling Fans
http://www.fandiego.com/blog/noisy-ceiling-fans-how-to-fix/
(this is my FAV)
Good Luck Alls...
Hi Alls,
ReplyDeleteMaybe we can add up another infos, based on same problem from
this website :
http://blog.aztronics.com/?p=207
Good Luck...
This is working great on the panasonic remote control fan! I bought a 1uf 450VAC capacitor (RM1.50) and replace the 0.82uf. The capacitor is not leaded but wired... so need to do a bit modification.
ReplyDeleteMy fan was stuck on medium and was unable to shut it off with the remote. I called Panasonic who said it would take two working days to come around. Four days passed and I found this site. I took out the control board and took it to a small electronics shop Tanjung Tokong, Pulau Penang. Picked it up the next day after paying RM10 and installed it and the fan is once again working as it should. Great advice for the DIYer. Thanks, Larry
ReplyDeleteHad the similar problem with my KDK ceiling fan, was running on a constant speed and was jerking, remote not functioning. Open up the fan btm cover, the control board is similar to the Panasonic F-M14C7. had purchased the 0.82uF capacitor frm a electronic shop for RM3.50, it was slightly smaller compared to the original one(which was exactly same as Panasonic F-M14C7 ). Fixed it and walla, my fan is back to normal :).
ReplyDeletehi guys, Im using F-M14C5 and currently having the same problem, but I'm not sure how to open the bottom cover, i to open it by turning anti-clock wise direction, but it wont work.....anyone can help? thank you
ReplyDeletethanks for sharing!
ReplyDeleteI've had very good luck ordering parts (not only capacitors but soldering iron, etc) from my.element14.com - they take MB2U as payment and free delivery to Malaysia! Waiting for my capacitor now to see if that fixes the problem I have with mine (Speed #1 s l o w)
ReplyDeleteThank you! This really work, I follow your blog and managed to repair 4-blade Panasonic F-M14C5 fan, saving Rm120 which one Pana shop quoted me for the board and labour cost!
ReplyDeletemy Pana MY143 fan moving very slow, any idea how to fix ??
ReplyDeleteanyone of you can teach me how to open F-M14C5 casing? i try to open it by turning anti-clock wise direction, but it wont work
ReplyDeleteThis comment has been removed by the author.
ReplyDeleteThank for your helpful information, I had just fixed my 2 of F-M14C5 with change of 2 cap. Its help me to save about few hundred to change the new one.
ReplyDeleteThanks a lot....:)
My F-M14C7 cannot be turn on...but the remote control works on the others fan...i already change the pcb board last year cost rm70 and the fan is back to normal...now the same problem happen again...any idea how to fix it?
ReplyDeleteHI,
ReplyDeleteThis is for Panasonic ceiling fan model F-M15E6..WHEN SWITCH ON HAVE SOUND KELO...KELO...AND SPPED SLOW LIKE 1 AND ONLY THIS SPEED HAVE.AND NO ANY FUCTION WHEN USING REMOTE ALSO..ANYONE SMART CAN HELP ME TO SOLVE BY DIY.. THX.
, thanks for the post, i able to fix it by change the Cap. you can buy online via http://my.element14.com/jsp/search/productdetail.jsp?sku=2281885&CMP=i-55c5-00001621
ReplyDeletethanks. This fixed two f-m14c5 fans today. One more to go. Apparently half the f-m14c5 fans at my place had run into that problem over the years. I cannot believe those serviceman claiming its not repairable.
ReplyDeleteThanks for that info budzer. Mine was the F-M-145C5 (4 blades) which went jerking and remote control unresponsive similar to yours. I didn't have the exact 0.82uF replacement, and settled for 1uF (400V) and size was bigger. Soldering the capacitor on the PCB track side was easier for me to place the capacitor between the PCB and the fan rotor - ample space. After replacement, all features including remote worked as normal. Thanks again.
ReplyDeleteI have 3 units of these panasonic remote fans. All 3 are having the same PCB board issue. I replace 2 already with complete new PCB board bought from Pasar Road at KL. Seller claimed they were original replacement part supplied by Panasonic. Cost about RM65 to RM80.
ReplyDeleteNow, I will try to replace only the capacitor and see would it fix the problem.
Is it only me to feel the life span of these Pana fans are unreasonably short and Panasonic should had rectified the problem or stop marketing these fans.
Thanks bro. Great DIY. I got 5 of this fan, and 4 is stuck at speed 1 and cannot use remote control. Went to Pasar road bought 5units of this thing for replacement @RM2.50 per piece. The fans are about 4years old.
ReplyDeleteGreat Posting .... thanks again
Credit to this post. I found a fix for my kdk stand fan. You may view my fix below
ReplyDeletehttp://kdkfan.blogspot.sg/2013/10/my-fan-repairothology-for-kdk-stand-fan.html?showComment=1393116600282#c8005312441653517655
For F-M14C5, step to dismantle the cover:
ReplyDelete1. On top of the housing cover, there are 2 screws between the blades, loose the screw on the right, there are 4 of them.
2. Oncer took out the housing cover, loose the 3 screws on the controller cover.
3. The controller board is just clip on, you should be easily took it off and then unplug the 2 connection wire plug too.
How to open the cover please? Can anyone help!!!
ReplyDeleteHow to replace the pcb in the F-MY 143 Panasonic ceiling fan? I can open the cover.
ReplyDeleteMine too MY143 PCB panasoci ceiling fan got like 5 capacitors . Not sure which could be faulty.
ReplyDeleteFor Panasonic ceiling fan model F-M15E6, I just need to open the cover to replace the capacitor? All I could find @ Jln Pasar was
ReplyDelete2uF±5%
50/60Hz
450VAC
25/70/21
Can it be used? And I tried opening the cover but to no avail.
Anyone can guide?
Excellent blog. Thank you for the original post. I could not find the capacitor and if I had I dont think I could replace as you need to be good at soldering. However any Panasonic service centre will sell you the PCB board for 57RM. I bought in Kajang but also available in Kepong etc. I took my fan from the ceiling but I think you can put in the new board without removng. Just look at centre of fan where lights are you will see lock/unlock. Twist to unlock. Then you can see the circuit board. Remove the power imputs x 2 (make sure your electric for house ias switched off), unclip board and replace with new one...........so simple. My fan is working like new.
ReplyDeleteThanks for the tips. I fixed my Panasonic F-M14C5 fan by replacing the capacitor I bought online from element14 which costs RM3.10 in compare to PCB board which costs RM57. :-)
ReplyDeleteAnyone can advise me how to remove the covr. I tried left and right trun but to no avail. Please help.
ReplyDeleteI tried to open my FM15E2 fan cover but to no avail. Please help. Thanks
ReplyDeleteexcellent bog. thank you for the owner of the blog.
ReplyDeletei tried F-M15E6, work perfectly.
the capacity can buy from element14. cheap as fast delivery. no need for pasar road so far.
the cover is not easy to open. have to turn it anticlockwise very hard.
Hi YSP
ReplyDeleteCan you tell me the capacitor spec you used ?
Thanks
what is the shop name in Kajang?
ReplyDeleteHi bro..
ReplyDeletethanks for the update... need to get a sucker...
the concept is the same ..meaning the pcb board layout is the same as the KDK fan remote control board.
will go to pudu pasar tmrw... and get this fixed.
and yes the new board price + installation fees by kdk tech is 130..wtf to that.
but guys... the concept of capacitor is also the same issue as no cold air from your air-cond.
U have to open up the compressor box up... the capacitor is a big cylinder looking in black shade.
I have change both capacitors and I can control the speed but not getting the same speed as my another Panasonic fan.Price for capacitors is RM 3.80.
ReplyDeleteThe price of the new board is RM58 in Pasar Road. I have search in few shops there and almost the same price. They have a board for 4 blade and 5 blade.
Planning to change different fan now. No more trust in Panasonic ceiling fan.
Hi!
ReplyDeleteThanks fro your tips
I have changed the capacitor .82uf to 1.2uf and it work for the PCB F-MY 143 as well.
Thanks!
ReplyDeleteHi Budzer bro,
ReplyDeleteMany thanks for the tips. It works for my Panasonic PCB F-MY143 too.
0.82uf capacitor RM4 + soldering charges RM3, total cost RM7.
It save me RM95 from new PCB RM57 + installation charges RM45, total charges RM102.
Thanks bro....
For those who want to replace PCB without soldering capacitor, you can get it at I.C. Electronic (http://www.ice.com.my) from Jalan Pasar (KL). My dad bought the PCB from them with price tag RM45 in yesterday, put it back to faulty ceiling fan F-M14C5 and it work fine. :)
ReplyDeleteThanks Elvin for the website and address. It's very helpful
ReplyDeleteHi,
ReplyDeleteThanks everyone for sharing... I've fixed my Panasonic fan F-MY143 which was having kik kok, kik kok sound and unable to control the speed by replacing the 0.82uf cap for RM3.
Is small one or big one need to change?
ReplyDeleteLook at the value of the cap (.82uFK275V) & you'll know which one to change. Cheeers!!!
ReplyDeleteDoes it work the same for wall fan? I manage to fix my kdk ceiling fan by changing the capacitor,but I have the same problem with my kdk wall fan, I try replace the same capacitor in it but it didn't work. Any advise. This.
ReplyDeleteWall fan? Sorry, not sure lar .....
ReplyDeletei have facing the same problem with my ceiling fan. i had changed the pc board and still not working...any ideas??
ReplyDeleteFor Penangite who don't want to buy 0.82uF & 0.1uF from element14, can go to Santron Electronics Tradings at Kampung Benggali.
ReplyDeletehttps://www.google.com.my/maps/place/4192,+Jalan+Kampung+Benggali,+Kampung+Benggali,+12000+Butterworth,+Pulau+Pinang/@5.4077083,100.3711866,19z/data=!3m1!4b1!4m2!3m1!1s0x304ac4156ea5d7eb:0x8f1d119069b5b2b1?hl=en
It works for 3 Panasonic F-M14C5. Thanks.
ReplyDeleteHi brother, I had been looking for the solution for a long time, suddenly read your sharing, I keen to try it now, but the shop already close, anyway thanks for your sharing...
ReplyDeletehow to run the fan direct without using the PCB?Just want to make sure the defect is not from the fan magnetic coil (rotor&stator).I found corosion in it.
ReplyDeleteThanks! It works!
ReplyDeleteFor F-M15E6, How to open the cover?
ReplyDeleteI managed to open the cover. It was purely by luck I opened it. Extremely difficult, I wonder whether there is some technique to follow
ReplyDeleteAiseyy.. no luck for me. Change faulty 0.82uF, 0.1uF and 1.8uF, still not working.
ReplyDeleteI have a Panasonic M15E6 fan, After changing the 2 capacitors (0,8 and 0.1 micro farad) the problem still same. I guess the next capacitor I should change is CMPS-J, 1.9 UF J, AC530V. SNR 1.H08 25
ReplyDeleteAny body can help?
Any idea which shop in Jln Pudu that sell the capacitor and also do soldering service?
My Pana F-MY143 which was having kik kok, kik kok sound and unable to control the speed.Mine panasonic F-MY143 ceiling fan got 5 capacitors . Not sure which could be faulty.... please anybody can help me?
ReplyDeleteLook for the 0.82uf capacitor
Deletehi bro, mine is F-MY143the problem is klik klok sound the some time ok just fine, do you think i should replace the 0.82uf capacitor? thanks you..
DeleteFor those living in PJ, I manage to find the capacitor 0.82uF or 1.0uF at Syarikat S.e.a Electronic Trading Jalan SS 2/61 SS 2 Petaling Jaya Selangor. RM4 each.
ReplyDeleteThank all of u . My ceiling fan working dy.....
ReplyDeleteVery informative and thank you for sharing:)
ReplyDeleteYour are a lifesaver! I have 4 of these fans and all have died at least once, some more than once. Every time call the Pana service guy he charges an arm and a leg.
ReplyDeleteJust fixed 2 of my fans thanks to your excellent blog! Also found out that the Pana guy gave me a board which was previously soldered, so they know this cheap tip but of course it's a "trade secret". Take note if you decide to ask them to change the board, check the board and make sure the solders are "machine-based" and not "cap ayam".
I would buy you makan if I could :-)
Looking for help for M15E6 fan too. Anyone successful replace the cap and working fine? dont wish to throw this rm500 fan away.
ReplyDeleteJust to update, I changed the cap for my F-M15E6 model Pana fan. Cap is ECQU2A105ML brought from Element14 - RM3.51 with free delivery. Now my fan is working fine! Save me a few hundreds buck! Great! Hope others will find this info useful to repair their ceiling fan in future.
ReplyDeleteThank you!
Hi all,
ReplyDeleteCapacitors 0.1uF(RM2), 0.82uF(RM3) & 2.0uF(RM4) are available at "i Way Trans Electronics", No.39, Lorong Yap Hing, off Jalan Pasar Pudu, KL.
Current price for a new PCB (KDK-KY-143/Panasonic MY-143 5-blades) is RM70. Some electrical hardware shops along the same road selling the PCB at RM135!!.
I'm having 8 units of KDK KY143 in my house which consistently giving problems now & then, (especially the ones with high usage frequency), so bought 3 sets of the above 3 types of capacitors as spares. - just for sharing...
Bakar
Thanks for providing a good ceiling fans fan .Your product so nice .I think you need to follow our products .Please click here
ReplyDeleteceiling fans
Mine repaired. Kdk model which use same pcb board as panasonic. Just went to jalan pasar just now, the capacitor cost me rm5. The shop also sell one set new PCB, rm135. I refused to take it as I confident can be repair by myself. Thanks a lot.
ReplyDeleteMine repaired. Kdk model which use same pcb board as panasonic. Just went to jalan pasar just now, the capacitor cost me rm5. The shop also sell one set new PCB, rm135. I refused to take it as I confident can be repair by myself. Thanks a lot.
ReplyDeleteThank you so much for sharing this info, I just fixed my Panasonic Fan. Total cost of repair less than RM20 including purchase of soldering tools and the component.
ReplyDeleteThanks for the useful tip to replace the 0.82 uf capacitor. Get a repair shop to replace it for RM40 . The panasonic F-MY143 fan was not able to control the speed and it jerk every few seconds. The replacement of the capacitor seems to take care of the problem.
ReplyDeleteHi everyone, good sharing of the DIY to settle speed control.
ReplyDeleteAnyone can give some guides for annoying Humming sound. Despite having check all mounting screws are well tighten. It happens after about a year +
Hi all sifu... my fan still in slow speed after replaced the 0.82 & 0.1 uf capacitor. Pls let me know what others component need to replace.
ReplyDeleteHi all sifus... My fan slow speed problem solved after replace all 3 brown capacitors.
ReplyDeletejust replaced 0.82 microfarad capacitor on my F-M15E6. Thx to all contributors here. I saved more than hundred bucks by investing in some soldering parts and some soldering skills as well.
ReplyDeleteLarry, can you provide the contact to repair the KDK fan circuit board at Tanjung Tokong Penang? appreciate that!!
ReplyDeleteMy fan is KDK K15Y6, about 11 years old. Having same symptom once about 4 years back, asked KDK technician came and changed cause me around RM160 or so (could not remember), I did not keep the old PCB board - what a waste. Now the fan is facing same problem again, luckily, found the blog and went to Jalan Pasar searching for new PCB board, but too bad, only left new one which cause around RM135 and need to order. So I decided to change both 0.82 & 0.1 uf capacitor. Waalaa, my fan back to normal. But not sure can last for how long.
ReplyDeleteWhat is the shop name?
DeleteI have 5 panasonic bayu fans (3 years+), 4 F-M14E2 and 1 F-M15E2,few months ago 1 F-M14E2 in the dining room was very noisy giving "woo woo woo..." sound and the fan runs very slow, speed 3=speed 2 of the other fans, speed 4 just slightly faster then speed 3 and speed 5 go slower.
ReplyDeleteI took out the PCB and there is no 6.8uF on the board, instead I saw a block square 0.1uF and 4 brown-red rated 1.8uF, 2.4uF, 3.4uF and 5.0uF.
I don't know which one to change, so I bought a digital multi meter UNIT163B (rm71) to measure the capacitance.
I found the 0.1uF only read 47nF and the 1.8uF only read 501nF and the others are okay.
I went to SS2 but only can get the 0.1uF (1.8uF no stock). So I went to SS20 LKL Sunrise electronics and also no stock but the girl said if for Fans 1.5uF or 2.0uF also can use. I bought the 2.0uF and after I replaced the 2 faulty capacitors it works fine.
No more "woo woo woo.." sound and all the speeds also works fine (can't actually differantiate the speed with other fan although the capacitance is slightly higher)
K15Y6 fan, can you show how to dismantle the board and which capacitor you have replaced?
ReplyDeleteAppreciate your effort for the blog the informative blog on Ceiling Fans. Help us to find the genuine brands we are dealing with.
ReplyDeleteHi I wish to know do this tips an repairing apply Panasonic f-m14e8, I see the caps is almost the same. Can we test the PCB board after changing the caps without fixing back to the ceiling fan. Thanks.
ReplyDeletethe easiest way is plug it into the fan and test. After all, it is just a connector to plug in. Either it works or fails.
ReplyDeleteThanks kokhon.ng for your reply. The things is that I don't have a multi meter to test the capacitor which is at fault. In other words I will replace one by one to try it and know which is the likely cap. which cause the problem for future changing. I thinking of connecting it to a exhaust fan for trial but not sure it will work. The following items. 0.82uf 275vac, 5.0uF 250VAC, 3.4uF 250VAC, 2.4uF 250VAC, .1uF 250VAC. 330uF 35V. Can anyone get it for me. I will pay whatever the charges in sending it to me (at BM. Penang). Hoping to hear from you all.
ReplyDeleteHi cheekin, basically should be 1 component damage. No need to buy all these parts together. You can buy online at element14.my and is FOC delivery. I suggest you try with ECQU2A105ML to replace the 0.82uF.
ReplyDeleteThanks kokhon.ng hope that will help the problem which my remote control cannot be used because of the PCB board problem.
ReplyDeleteMy Panasonic bayu fan starts with an irritating electrical hum for a few minutes (at any speed). Any idea on how to solve this? I have no problem with the remote control at all. Just would like to get better ideas on this humming noise problem. Thanks.
ReplyDeleteI took sometimes to catch similar humming noise. It's like electrical coil humming noise. Had checked all capacitors on the circuit board, all mounting screws are all perfect. At last when I removed the plastic cover between ceiling and fan. Surprisingly the noise disappeared. Fix back cover noise comes back. Found that this plastic cover can't be adjusted too high up too close towards the ceiling. Tried 3 step down. Humming noise gone. Already more than 6 months, enjoy quiet fan.
ReplyDeleteHave a try. It could be other things.
Regards
Thanks for the blog helped a lot. With regards to the removing of kdk oscillating knob, simply pull hard upwards. kdk ceiling fan
ReplyDeleteThanks for your information. Panasonic Service centre in Hyderabad
ReplyDeleteHi Budzer , thanks for the blog. Changed capacitor C1 & C2 and yahoo, it works! RM 5 for parts & some soldering. Parts were from i Way Trans Electronics, as mentioned above (tq). I have added the shop's location and now it's searchable in Google Maps.
ReplyDeleteI had removed the fan from the ceiling as I had not seen this post at that time. Did not have to as the two lower plastic covers are easily removable. The circuit board is accessible then.
Budzer, I almost bought a new fan fr Lazada! After reading your blog, decided to give it a try, RM 4 capacitor + soldering, done. Thanks for the sharing
ReplyDeleteThanks,kdk ceiling fan singapore
ReplyDeleteThis comment has been removed by a blog administrator.
ReplyDeleteAll the information about Refrigator repairing services are very helpfull for me.this is sach a nice post i am thank full for
ReplyDeleteprovidind me all services information Aircon servicing
My Panasonic 3 speed M14C7 fan has humming sound at speed 2 and 3. Speed 1 ok. Remote control working fine and can control the speed. PCB board has 1 black 0.82uF capacitor, and 3 brown capacitors (1.8uF, 2.4uF and 5.0uF). Any idea which capacitor to change?
ReplyDeleteHumming sound could due to the top cover (covering the metal tube). I tape it and no more sound. You can try take out the top cover see if the sound still there...
DeleteHave you solved your the humming problem.I just read this article.
DeleteMy Panasonic F-M14C8 3 speed fan was also the same, all 3 speeds are working fine but there was a humming sound when the fan spins and it gets very much louder when the speed is increased.
DeleteThought of replacing the capacitors as shown in this blog but since my fan's speeds are all working fine, I decided to follow the advice in the comment section here to first check the top tubular plastic casing that covers the wires and metal harness from the ceiling to the fan.
I removed the tubular casing (just 2 screws on the sides hold the casing together) and the humming was totally gone, the fan spins quietly like it did on day 1 when it was bought.
I then followed the advice here & also from another owner's Youtube tutorial (you can view his video in the link above, thanks to him for providing a clear and concise tutorial regarding this humming noise issue, also thanks to the advice given in the comment section here as well) to put some white masking tape around the fan's connection point with the tubular case (I put 3 rounds of the masking tape) and secured back the tubular case at the closest setting to the ceiling. Voila, the fan now spins without any humming noise at all.
I think the humming noise is due to the vibrations of the fan's motor coils being transmitted to the tubular casing and the wide empty space inside further amplified the vibrations which in turn changed into a loud humming noise. The faster the fan spins, the stronger the vibrations are, and the louder the humming noise gets.
Hope this helps other owners of this fan.
If you encounter that speed 3 still spinning like speed 2, highly likely 1.8uF kaput. I replaced that, it is now working fine.
ReplyDeleteI am wondering what the other 2 brown capacitors does...
Antalya
ReplyDeleteAntep
Burdur
Sakarya
istanbul
M0Y
van
ReplyDeletedüzce
mardin
elazığ
sakarya
5Q7
muş evden eve nakliyat
ReplyDeleteçanakkale evden eve nakliyat
uşak evden eve nakliyat
ardahan evden eve nakliyat
eskişehir evden eve nakliyat
4E34X7
adıyaman evden eve nakliyat
ReplyDeletekastamonu evden eve nakliyat
kırklareli evden eve nakliyat
diyarbakır evden eve nakliyat
ankara evden eve nakliyat
TKMU4P
tekirdağ evden eve nakliyat
ReplyDeletekocaeli evden eve nakliyat
yozgat evden eve nakliyat
osmaniye evden eve nakliyat
amasya evden eve nakliyat
Y8MT
urfa evden eve nakliyat
ReplyDeletemalatya evden eve nakliyat
burdur evden eve nakliyat
kırıkkale evden eve nakliyat
kars evden eve nakliyat
HXS0
DF728
ReplyDeleteGate io Güvenilir mi
Çankaya Fayans Ustası
Kars Parça Eşya Taşıma
Kilis Şehir İçi Nakliyat
İstanbul Şehir İçi Nakliyat
Okex Güvenilir mi
Yenimahalle Boya Ustası
Çorum Şehir İçi Nakliyat
Burdur Lojistik
F9853
ReplyDeleteÜnye Marangoz
Konya Şehirler Arası Nakliyat
Burdur Lojistik
Ünye Çatı Ustası
Siirt Parça Eşya Taşıma
Eskişehir Şehir İçi Nakliyat
Bolu Şehir İçi Nakliyat
Düzce Şehir İçi Nakliyat
Telcoin Coin Hangi Borsada
BF2B5
ReplyDeleteBtcturk Güvenilir mi
Adıyaman Şehirler Arası Nakliyat
Kütahya Parça Eşya Taşıma
Luffy Coin Hangi Borsada
Ankara Şehir İçi Nakliyat
Ankara Fayans Ustası
Ağrı Lojistik
Ankara Parça Eşya Taşıma
Bursa Şehir İçi Nakliyat
08B18
ReplyDeleteÇerkezköy Oto Lastik
Rize Lojistik
Uşak Lojistik
Artvin Şehir İçi Nakliyat
buy testosterone enanthate
Van Parça Eşya Taşıma
Etimesgut Boya Ustası
Silivri Çatı Ustası
Yobit Güvenilir mi
8E959
ReplyDeletebinance %20 referans kodu
1C674
ReplyDeletebinance referans kodu
EA6A1
ReplyDeletebinance indirim kodu %20
74462
ReplyDeleteÖn Satış Coin Nasıl Alınır
Binance Ne Zaman Kuruldu
Kripto Para Kazanma Siteleri
Binance Neden Tercih Edilir
Bitcoin Çıkarma Siteleri
Binance Hangi Ülkenin
Coin Çıkarma
Kripto Para Nasıl Kazılır
Madencilik Nedir
452B5
ReplyDeleteKripto Para Oynama
Bulut Madenciliği Nedir
Coin Nedir
Bitcoin Hesap Açma
Coin Madenciliği Nasıl Yapılır
Kripto Para Madenciliği Nedir
Coin Nasıl Alınır
Ön Satış Coin Nasıl Alınır
Binance Ne Kadar Komisyon Alıyor
10CF6
ReplyDeleteresimlimagnet
07BC0
ReplyDeletebinance referans kodu
binance referans kodu
resimli magnet
binance referans kodu
referans kimliği nedir
binance referans kodu
referans kimliği nedir
resimli magnet
resimli magnet
31A24
ReplyDeleteamiclear
2792B
ReplyDeleteBinance Komisyon Ne Kadar
Caw Coin Hangi Borsada
Kripto Para Madenciliği Siteleri
Tiktok İzlenme Hilesi
Bitcoin Nasıl Üretilir
Referans Kimliği Nedir
Tiktok Takipçi Hilesi
Soundcloud Beğeni Satın Al
Onlyfans Beğeni Hilesi
BF42E
ReplyDeletemexc
binance referans kimliği nedir
kraken
kizlarla canli sohbet
https://kapinagelsin.com.tr/
mexc
bkex
bitcoin hesabı nasıl açılır
gate io
E9E40
ReplyDeletegate io
binance 100 dolar
binance
paribu
telegram kripto para grupları
telegram kripto
kraken
kripto para nasıl alınır
huobi
370AC
ReplyDeleteilk kripto borsası
bitmex
mexc
kaldıraç ne demek
probit
kızlarla canlı sohbet
okex
kripto para telegram
kripto para haram mı
1565C
ReplyDeleteJanuary 2024 Calendar
kucoin
June 2024 Calendar
kredi kartı ile kripto para alma
kripto ne demek
canlı sohbet uygulamaları
https://kapinagelsin.com.tr/
toptan mum
huobi
ftghtghjytjnuyjky
ReplyDeleteمهندس افران جدة
Great post on electrical systems! Understanding the basics of electrical circuits, safety measures, and maintenance is crucial for both homeowners and professionals. Clear explanations and practical tips can help avoid common issues and ensure efficient energy use. Looking forward to more insights on this essential topic! Thanks for sharing.
ReplyDeleteYHJGYVKJM
ReplyDeleteشركة مكافحة النمل الابيض بالاحساء
مكافحة الحشرات بالاحساء RP7LiboCC0
ReplyDeleteThanks and that i have a swell offer you: Renovation House Company home depot renovation services
ReplyDeleteشركة مكافحة النمل الابيض بالدمام C9H692jnIG
ReplyDeleteشركة صيانة خزانات LwIi86dxbb
ReplyDeleteشركة عزل اسطح بالقطيف N4O7oxcxAf
ReplyDeleteعزل اسطح بالجبيل HVX9YD1gpf
ReplyDeletestop spamming this site, idiots!
ReplyDeleteشركة مكافحة حشرات بالهفوف xp2h3dv3V0
ReplyDelete<a href="https://elrokn-elmethaly.com/%d8%b4%d8%b1%d9%83%d8%a9-%d8%b9%d
ReplyDeleteشركة تنظيف منازل بتنومة BNWVnzP24x
ReplyDeleteشركة مكافحة الفئران بالدمام BBVAjQiriX
ReplyDelete
